Vector - 3D Mapping For Lasers

Simplify your Workflow when measuring Spatial Systems

Vector speeds up your workflow for speaker system measurement.
Import your system file, pair your laser, calibrate with two points, then measure your targets. When you're done, export your file with updated positions.

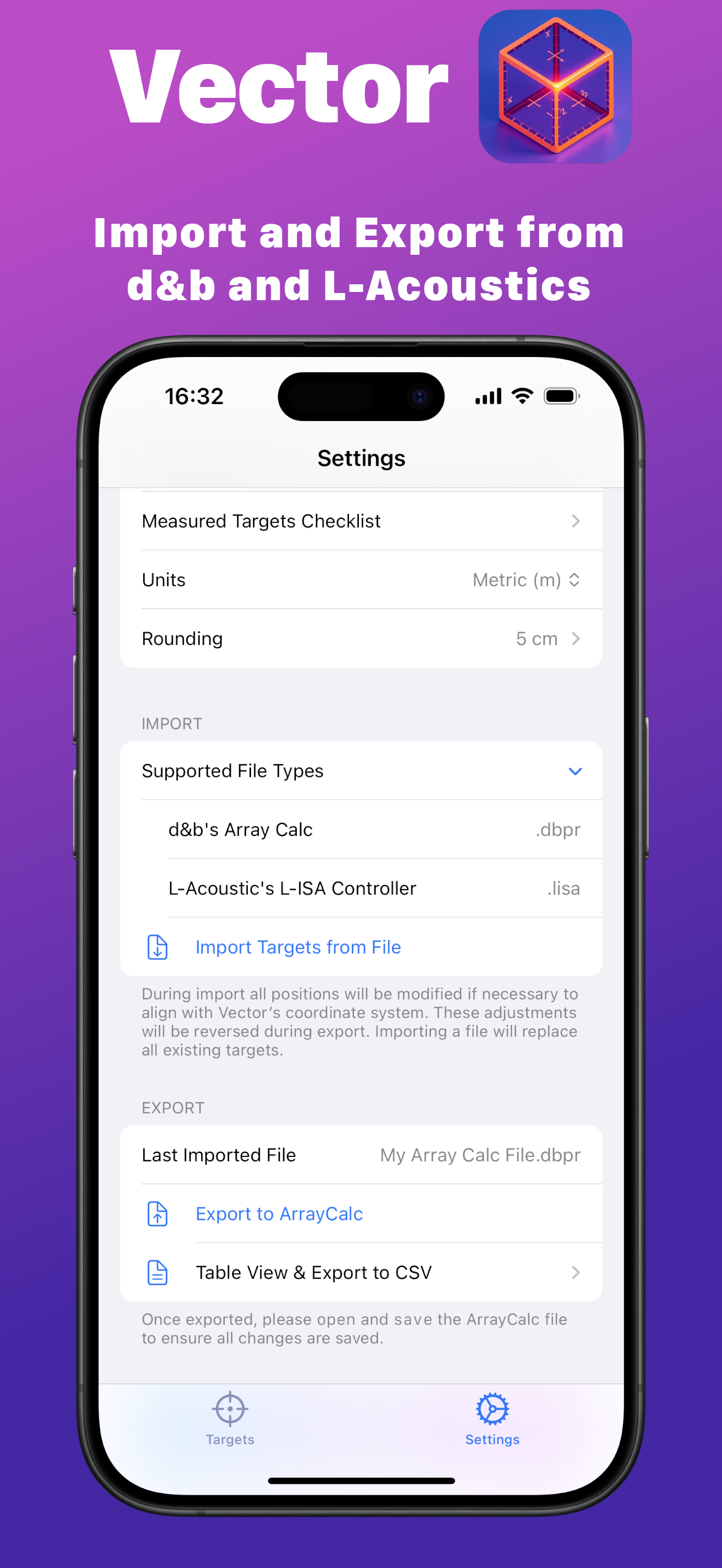

Import

Importing from your ArrayCalc or L-ISA Controller File will create a target list ready for Measuring.

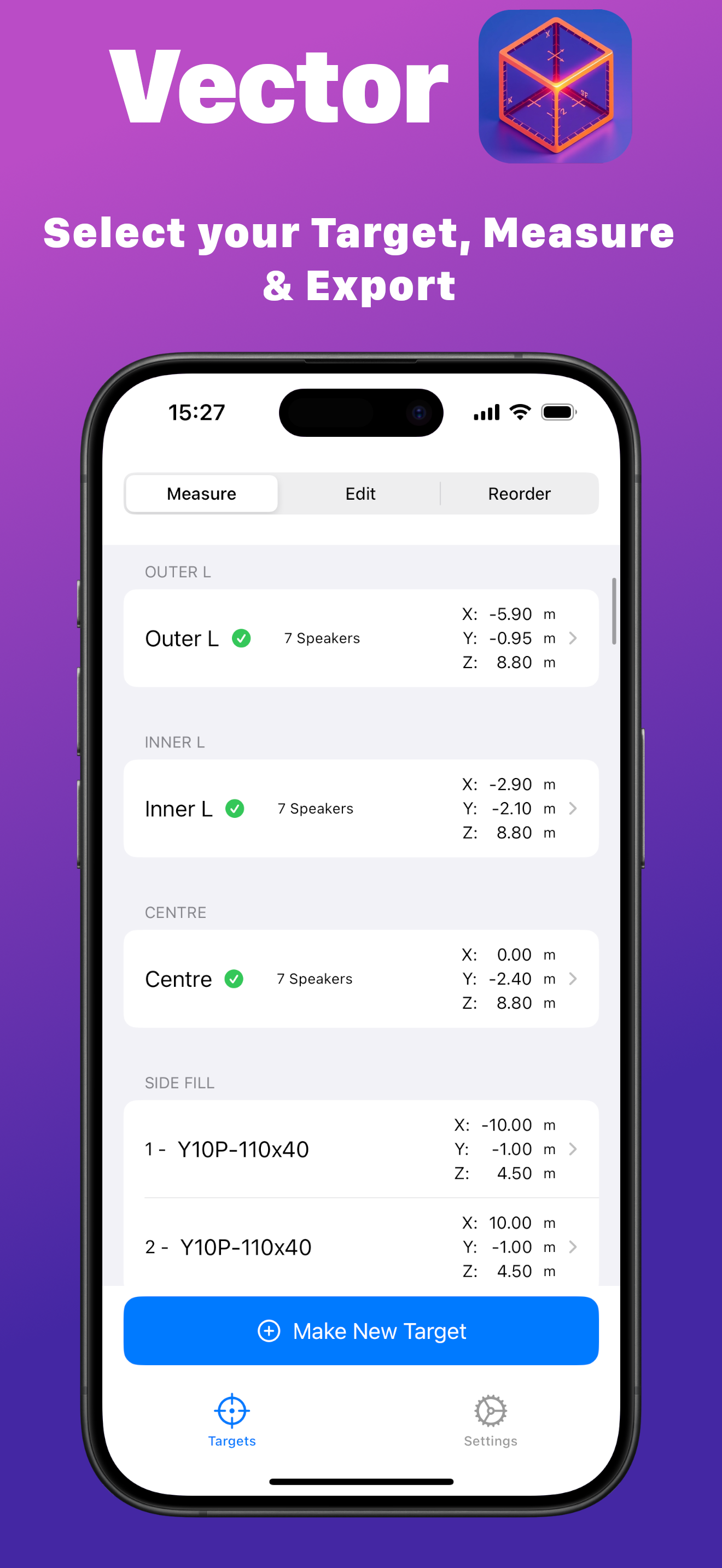

Measure

Use your Leica S910 or X3 Disto with a DST 360 Adapter in point-to-point (P2P) to calculate x,y,z coordinates.

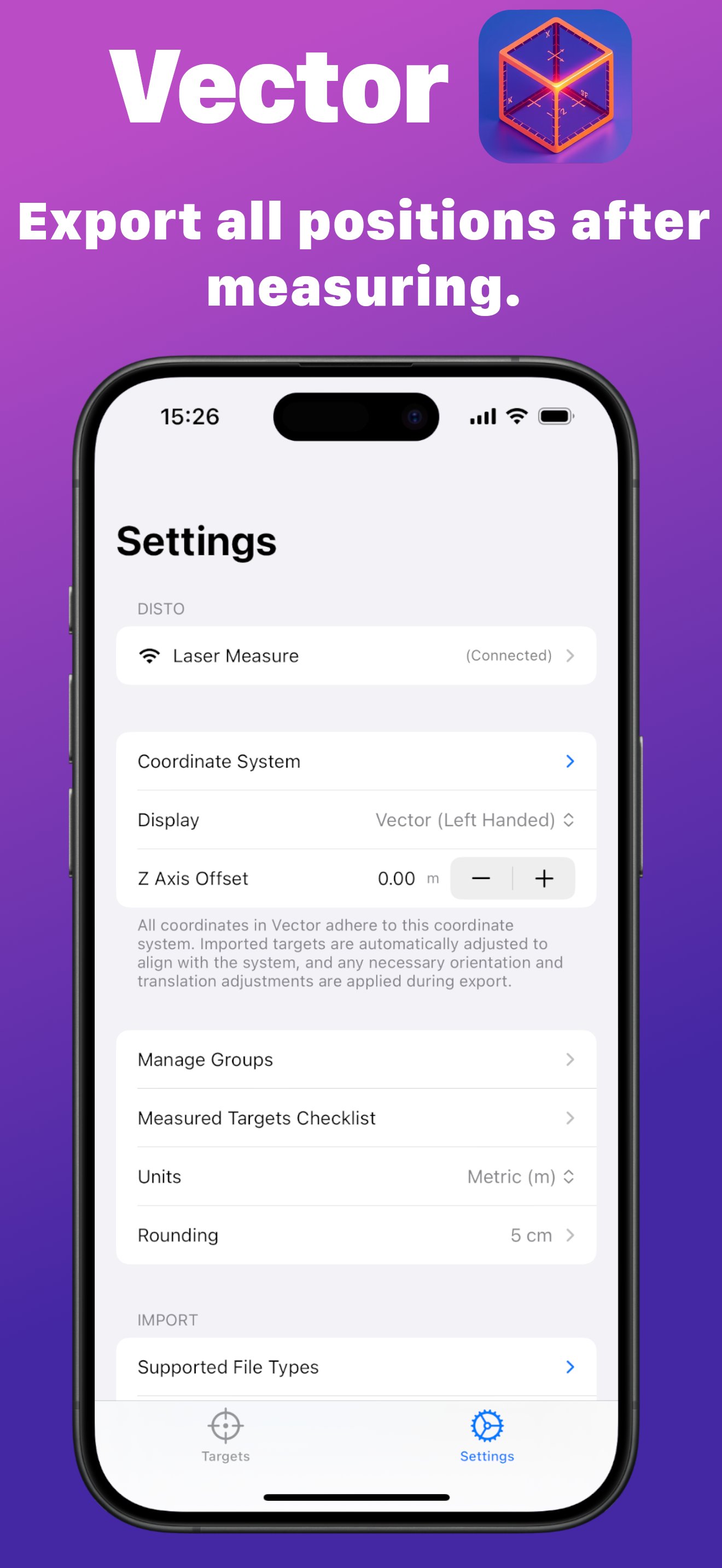

Export

Export your targets back to your file, Vector will update the positions of the targets giving your an accuratly measured system file.

Import

Importing from your ArrayCalc or L-ISA Controller File will create a target list ready for Measuring.

Measure

Use your Leica S910 or X3 Disto with a DST 360 Adapter in point-to-point (P2P) to calculate x,y,z coordinates.

Export

Export your targets back to your file, Vector will update the positions of the targets giving your an accuratly measured system file.

DST 360 Adapter

When using Leica DISTO models like the S910 or X3, a DST 360 Adapter is required to perform Point-to-Point (P2P) measurements. This adapter enables the laser device to rotate 360 degrees, allowing it to accurately capture complex spatial measurements and positions in three dimensions. Without the DST 360 Adapter, the DISTO device cannot perform the full P2P functionality needed for advanced spatial mapping and precise distance calculations between multiple points. For more information, please visit Leica’s official product pages:
